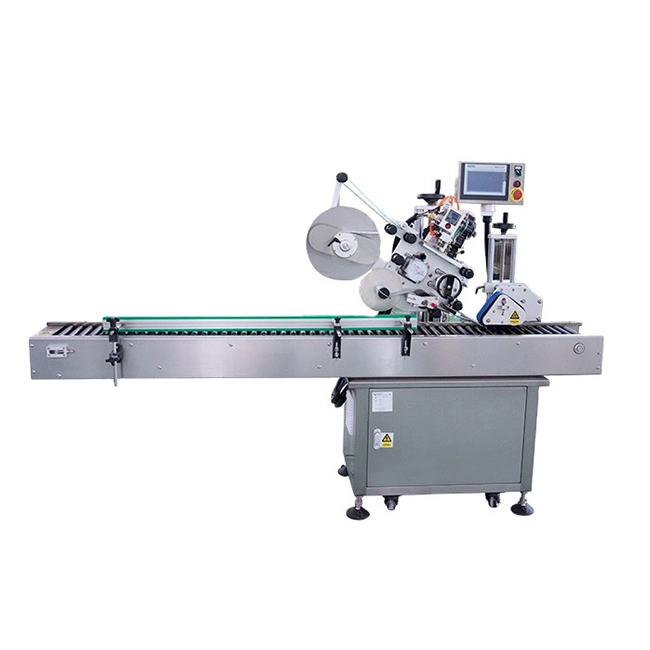

Horizontal Wrap Around Tube Labeling Machine

Etiqueteuse horizontale pour tubes

---

1. Apply to food, pharmaceutic, daily chemical, stationery, plastic industries etc.

2. Mainly used to automatically stick adhesive label on cylinder or small conical products which is unable to be carried vertically, such as tube, cylinder bottle, water injection, conical tube etc. High labeling precision, stable work ability, neat, no wrinkle, no bubble.

3. Suit for single or similar diameter products, orbit unadjustable and Can be matched with bottle feeder, ribbon printer, date printer, etc

Paramètre technique

---

Taille de l'étiquetage	(L) plus 10mm (W) 110-100mm	Diamètre intérieur roulant	76mm
Taille du produit	(D) 10-16mm16-26mm 26-36mm (H) moins 100mm	Diamètre extérieur roulant	350mm
Précision d'étiquetage	+ -1mm	Source de courant	AC220V 50Hz 3kW
Vitesse d'étiquetage	40-150 (pcs / min) (se rapporter au matériau et à la taille de l'étiquette)	Taille de la machine	(L) 2000 * (L) 1700 * (H) 1500mm

Détails rapides

---

Type: étiqueteuse
Condition: Nouveau
Application: boisson, produit chimique, marchandise, nourriture, machinerie et matériel, médical
Type de conditionnement: Bouteilles
Matériel d'emballage: papier, plastique
Grade automatique: automatique
Type de moteur: électrique et air
Tension: 110V / 220V
Puissance: 1.5KW
Lieu d'origine: Shanghai, Chine (continentale)
Nom de marque : VKPAK
Dimension (L * W * H): 2100 * 700 * 1000mm
Poids: 300 kg
Certification: GMP
Service après-vente fourni: Ingénieurs disponibles pour entretenir des machines à l'étranger
Nom du produit: machine d'étiquetage horizontale pour tubes enveloppants
Fonction: tube étiquetage
Matériel: acier inoxydable S304
Vitesse d'étiquetage: 60-150 bouteilles / min
Utilisation: étiquetage horizontal
Avantage: équipe de support professionnel

A horizontal wrap around tube labeling machine is a machine that is designed to wrap labels around cylindrical tubes with high efficiency and accuracy. This type of machine is ideal for labeling a wide range of products, including cosmetic tubes, toothpaste tubes, food containers, and other cylindrical products.

The machine is designed with a horizontal orientation, which enables it to handle large volumes of products in a compact and efficient manner. The labeling process starts with the product being fed into the machine, which then positions it in the correct position for labeling. The label is then applied to the product as it is rotating, ensuring a smooth and even application.

The machine is equipped with advanced features such as a touch screen control panel, which makes it easy to operate and adjust the settings. The control panel also provides real-time monitoring of the labeling process, enabling the operator to make any necessary adjustments to ensure consistent and accurate labeling.

The machine is also equipped with a high-speed labeling system, which can apply labels at speeds of up to 200 tubes per minute. This high speed capability ensures that the machine can keep up with the demands of a fast-paced production environment.

In addition, the machine is equipped with a built-in quality control system, which checks the accuracy of the labeling process and alerts the operator if any problems are detected. This ensures that the product is labeled with the correct information and meets all quality standards.

The horizontal wrap around tube labeling machine is also designed to be easy to maintain, with removable and replaceable components that can be quickly and easily replaced if needed. This helps to minimize downtime and reduce the cost of maintenance.

In conclusion, a horizontal wrap around tube labeling machine is a versatile and efficient labeling solution for a wide range of products. With its advanced features, high speed capabilities, and easy maintenance, it is an ideal choice for companies looking to improve the accuracy and efficiency of their labeling process.
