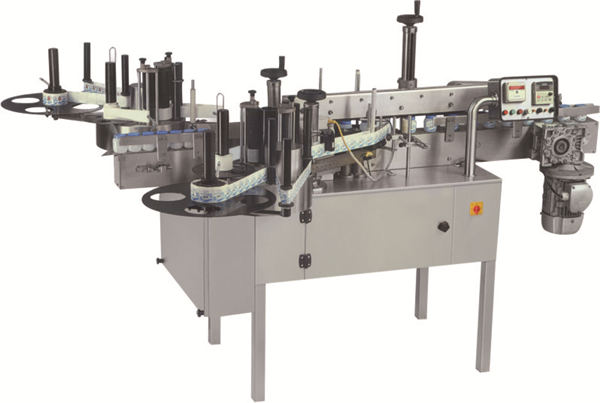

Machine à étiquettes de double côté de bouteille plate automatique


1 Automatic bottle Sides Labeling Machine
2 labeling on two sides
3 for any shape of bottle or box
4 Touch Screen Control

Paramètre technique

Dimensions2800 x 1500 x 1600mm
PuissanceAV220, 50 or 60Hz, max 2.5KW (depends on customer's requirement)
Control SystemPLC and Touch Screen Controller
Taille de la bouteille15 to 150mm in Length; 10 to 100mm in Width; 40 to 350mm in Height
Taille de l'étiquette15 to 180mm in Width; 10 to 250mm in length
Label Reel Inner Diameter76mm
Label Reel Outer Diameterwithin 360mm
Vitesse d'étiquetage100 to 250pcs per minute (depend on the label length and bottle size)
Optional EquipmentCode Printer

Main Configuration

1Système de contrôle PLCMitsubushi (Japon)
2Stepper motorKINCO (Allemagne)
3chauffeurKINCO (Allemagne)
4Changeurs de fréquenceSchneider(France)
5PhotoélectricitéKeyence (Japon)
6capteur photoélectriqueFOTEK (Taiwan)
7Touches screenSimens (Germany)
8Conveyor MotorZAGA (Japan)
10Acier inoxydable304SS
11Aluminium alloySurface anode gush arenaceous technology


1) This labeler is full- automatic and can label on any shape bottles: single side labeling and double sides.

2) Widely used in medicine, daily chemicals and cosmetic, food and beverages industries.

3) Equipped with PLC control system and Touch Screen Control. The machine automatically stop running when no label and no bottles.

4) Photoelectric detecting make labeling in high speed and high accuracy.

5) Have a very good labeling effect, no crumple and no bubble.

6) Used high class of stainless steel and aluminum alloy. The whole machine structure has high strength and good appearance.

TS 920 automatic flat bottle double sides labeling machine

Détails rapides

Type: étiqueteuse

Condition: Nouveau

Application:Food, Beverage, Commodity, Medical, Chemical

Type de conditionnement: Bouteilles

Packaging Material:Plastic, Paper, Metal, Glass, Wood

Grade automatique: automatique

Type de moteur: électrique

Tension: 220V

Power:max 2.5KW

Lieu d'origine: Shanghai, Chine (continentale)

Nom de marque: NPACK

Dimension(L*W*H):2800 x 1500 x 1600mm


After-sales Service Provided:Overseas third-party support av....
