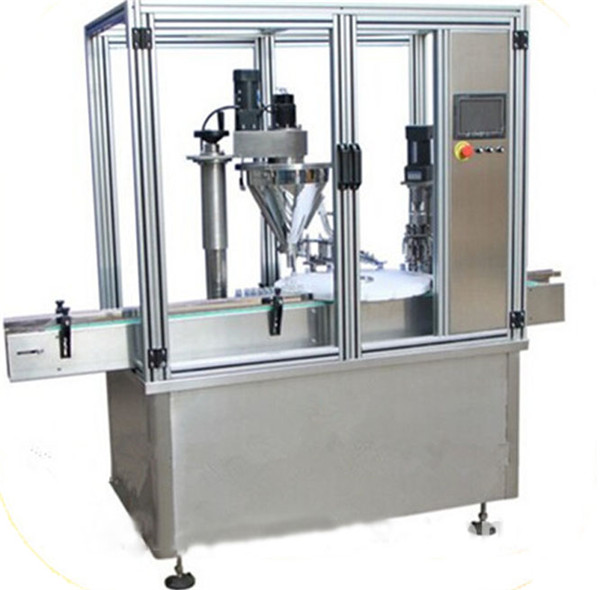

Machine de remplissage automatique de poudre Fabricant

Powder filling machineis specially used for feeding material into powder filling machine; it is widely used in food, chemical industry, plastic packing and other industries. The height is subject to space of workshop. It can move freely, high speed, and reliable.

1. Bottle feeding machine:

This automatic ordering machine adopts one motor to drive working table-board rotate, so as to deed bottle into conveyor. It is mainly suitable for cans, round or square bottle, is corollary equipment of automatic product ling in common usage, to satisfying many kinds of bottle, if adjust, you need only adjust the position and height of baffle. The machine is equipped with stepless governing frequency conversion.

2. Auger powder feeding machine

Main parameter:

Screw diameter: 60

Capacity: 300L/H

Power providing: 0.55

Hopper volume: 70L

3. Rotary type powder filling and capping machine

Powder filling machine can finishing measuring,filling etc,because of origonal desigin .It is more suitable for packing powdered material that is easy to flow, like veterinary drug, sugar, glucose, carbon dust, talcum powder, essence etc.

Except motor, the shell of the whole machine is 304 stainless steel, and the powder contact part is SS 316.combined transparent work bin, easy to dismantle without tools. Adopts servo motor to drive auger, with the advantages of durable, accurate location, stable function etc. the machine is controlled by PLC, with stable working, anti-distraction, high filling precision etc.


1.The powder filling machine is mainly used for medical industries.

2.The powder filling machine fill automatically and complete the measurement.

3.The whole machine is made of SUS304 stainless steel.

4.It is controlled by the PLC touch screen which can show us Chinese and english, so the operate is simple.

5.The powder filling machine dosing with volumetric screw.

6.The filling volume can be settled in touch screen. It is combination of totally enclosed, stainless steel and organic glass hopper. It is convenient to remove and wash.

7.The filling range is widely. It can be adjusted. It is used for different volume.

8.The machine has the function: no bottle no fill.

9.The parts which contacts the powder is made of SUS316 stainless steel material. The machine fully meets with GMP requirement.

4,Packing table

1. Production capacity: 25-50 b/min

2. Filling head: 1/2

3. Applicable specification:20g

4. Filling error:≤±1%

5. Voltage:380v/50HZ

6. Power:2.2kw

7. Dimension: to be confirmed

8. Weight: to be confirmed


Détails rapides

Type: machine de remplissage
Condition: Nouveau
Application: Powder filling machine
Type de conditionnement: Étui
Packaging Material: Glass,Plastic,Metal
Grade automatique: automatique
Type de moteur: électrique
Tension: 220V / 380V
Power: 2.2kw, 2.2kw
Lieu d'origine: Shanghai, Chine (continentale)
Nom de marque: NAPCK
Dimension(L*W*H): to be confirmed
Poids: 500 kg
Certification:CE ISO9001
Service après-vente fourni: Ingénieurs disponibles pour entretenir des machines à l'étranger
Equipment type: Powder filling line
Capacity: 25-50 b/min for powder filling machine
Volume: to be confirmed
Applicable specification: 20g
Filling head: 1/2 for powder filling machine
Function: Filling Sealing Date Printing
Usage: Commodity
Bottle type: Round Bottle for powder filling machine
Warranty: Life Long Service
