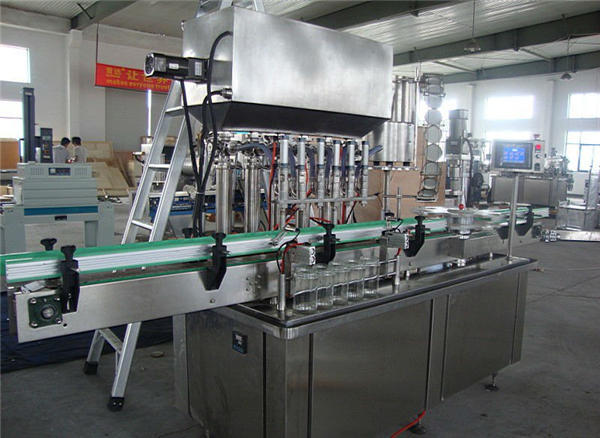

Machine de remplissage complètement automatique de ketchup de tomate

Accueil / Machines de remplissage / Machine de remplissage complètement automatique de ketchup de tomate

Machine de remplissage complètement automatique de ketchup de tomate

Caractéristiques

NP-VF This series filling machine is suitable for filling viscosity liquid, such as cream,lotion, shampoo, sauce,honey,ketchup, and other viscous liquid. Automatic controlled by computer (PLC), touch screen control panels. Totally enclose form, submergence filling, high measurement accuracy. Compact and perfect feature, liquid cylinder and conduits easy dismount and clean. it also may suited various figure Containers.

Configuration and performance, features


1.Adopt German original SIEMENS (Siemens) PLC control(or Mitsubishi PLC) to ensure  the performance stability of the system.
2. Select imported electricity, pneumatic control components, with stable performance.

3. Photoelectric detection system adopts German products, with reliable quality.

4.The leading anti-leakage devices ensure that no leakage occurs in the course of production.

5.According to users’ demand, automatic covering machine, automatic continuous capping machine, spinning and covering dual- use machine, leak detection machine, aluminum foil sealing machine, ink-jet printing machine, automatic unpacking machine

packing machine and pack - sealing machine can be affiliated to be used to form pipeline operations.

Main performance Parameter


1.Name: ketchup Filling Machine
2.Model:NP-V F
3.Applied bottle range:100ml-1000ml,1000ml-5000ml
4.Material density:0.6-1.5
5.Tolerance of filling quantity ±£1%
6.Filling speed: 25b/min for 1L

7. Power Source: 220V,50HZ
8.Air pressure:0.6Map
9.Air Consumption:200L/min
10.Power output:2KW

Dear Customer, we can not list all of our machines function, features and technology specifications on Website product show, If you can not find the machine you need or you have doubts or quesitons, you can send inquiry to us for details specification,recommend or suggestion, our sales engineers will offer you a good suggestion and solution

Caractéristiques


Machine de remplissage de ketchup
Specilizing in Sauce Fillling Machine
PLC contorl

Détails rapides


Type: machine de remplissage
Condition: Nouveau
Application: chimique
Type de conditionnement: Bouteilles
Matériel d'emballage: bois
Grade automatique: automatique
Type conduit: pneumatique
Tension: 220V
Puissance: 1.5KW
Lieu d'origine: Shanghai, Chine (continentale)
Nom de marque: NPACK
Numéro de modèle: NP-VF
Dimension(L*W*H): 2500*1350*1850mm
Weight: 450KG
Service après-vente fourni: Ingénieurs disponibles pour entretenir des machines à l'étranger
